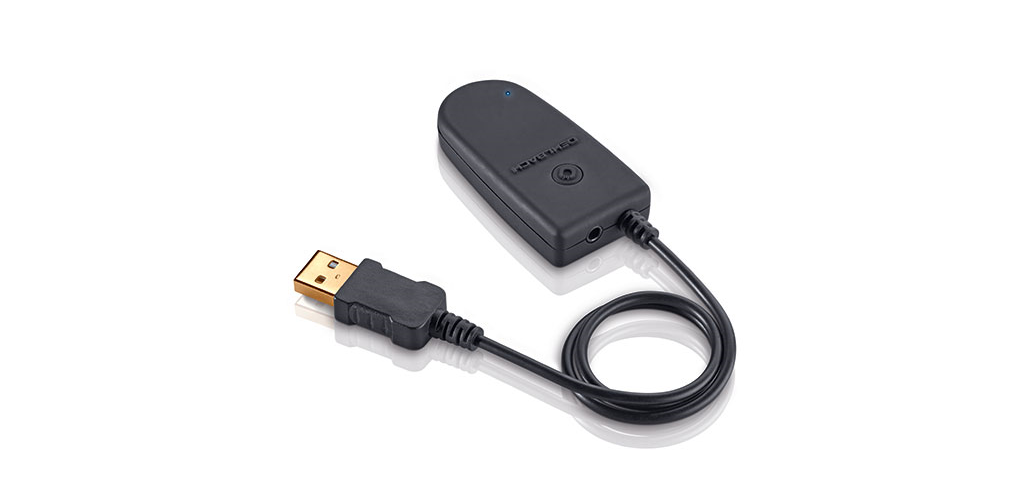

Oelhbach BTT 5000 Receiver

Thanks to the BTT 5000 proud owners of powerful hifi systems now no longer need to despair when it comes to uncomplicated wireless streaming from various music sources. The compact Bluetooth® transmitter forms a flexible link between the classic hifi world and modern music streaming. Backed up by aptX™ technology which guarantees an artefact-free transmission of the signal in CD-like quality.

Key aptX™ Features

Consistent audio quality

Fixed compression ratio ensures consistency

Full spectrum of sound

From 20Hz to 20kHz, aptX audio covers the human hearing range

Interoperability testing program

We operate rigorous testing for all aptX enabled products, so you can be confident all products will deliver the same audio quality

aptX™ Tech Specifications

Sound quality
  • THD+N@1kHz: -67dB
  • SNR@1kHz:  93dB
  • PEAQ audio quality:-0.18
  • Qualcomm® Kalimba™ MHz DSP technology: 42MHz@48KHz stereo decode ~45MHz@48KHz stereo encode
Audio Encoding
  • 16-bit, up to 48kHz sampling rate
Program memory usage
  • 3.3kwords (encoder) / 3.6kwords (decoder)
Data memory usage
  • 1.8kwords
ARM MHz
  • ~63MHz (stereo encode) on ARMv7A with NEON
Bit Rate
  • 384 kbps (48 kHz sampling)
